Planning application

Planning permission drawings are typically submitted as part of the planning application that includes forms, supporting documents and statements. The submission process may vary slightly depending on the local planning authority (LPA) . It’s essential to check the specific requirements of the LPA and provide all their necessary documentation alongside the drawings.

Planning permission drawings must adhere to relevant planning regulations, building codes and local planning policies. They should reflect any specific requirements or constraints outlined by the LPA.

Requirements

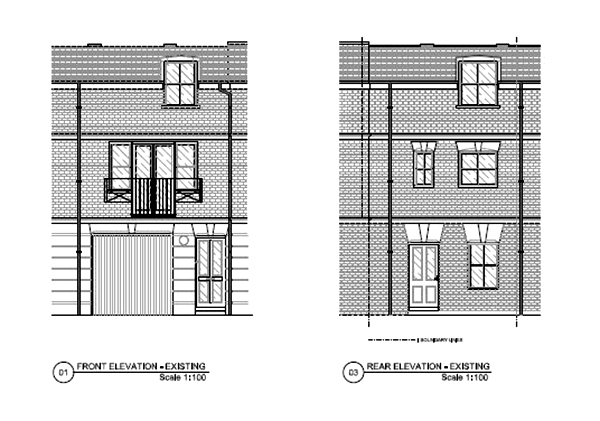

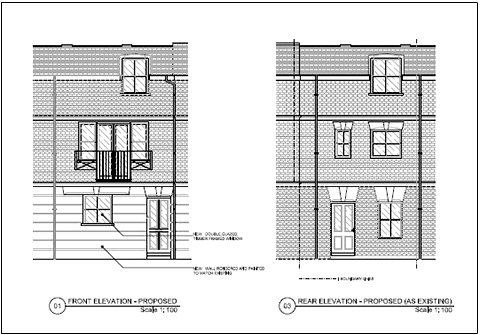

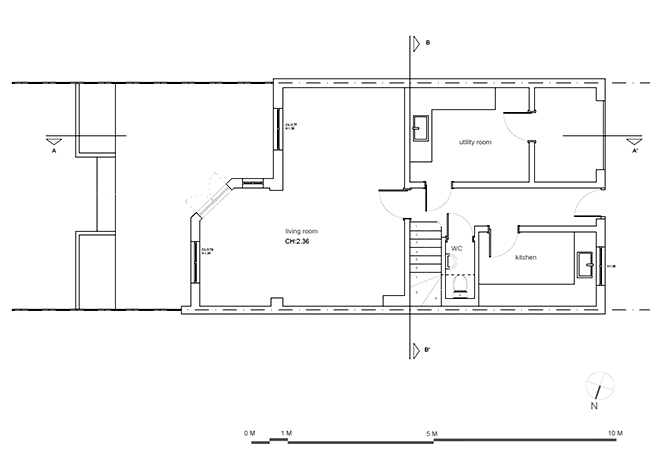

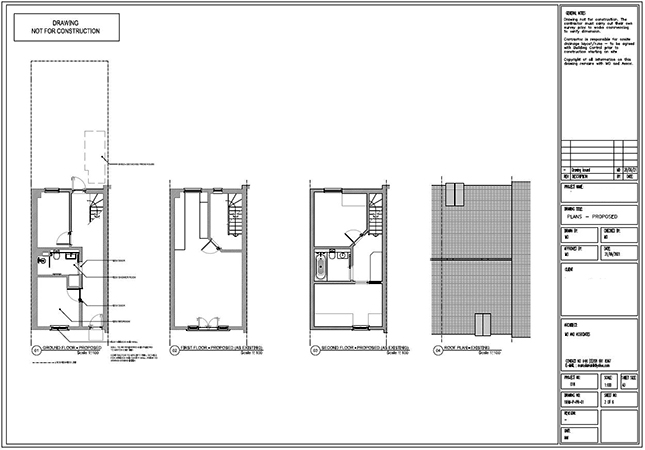

Obtaining planning permission does not actually require detailed construction drawings, only a set of plans that clearly outline your proposal. These include a site plan, floor plans, a roof plan and elevations sometimes accompanied by sections. These drawings do not need to be drafted by professionals – provided they fulfill certain requirements such as different scales, labels, dimensions etc. – however it’s probably sensible to choose to work with architects, designers or planning consultants to ensure that your planning permission drawings meet the necessary standards and convey the proposed development effectively.

What we do

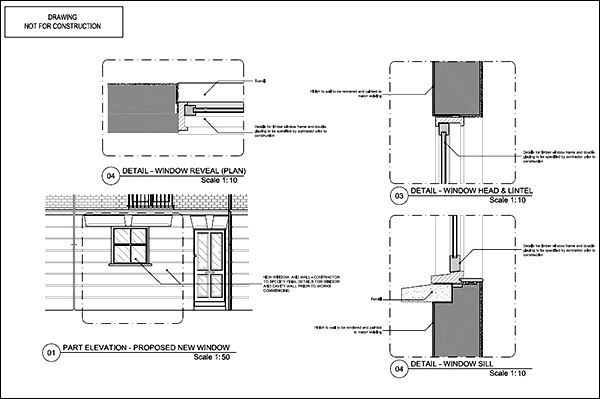

Over the last decade we have created many drawings for planning permission purposes. These projects have included extensions, loft conversions, en suite bathrooms & toilets, and garage conversions. If you have a small to medium project – particularly if you live in a conservation area where just replacing a window needs planning permission – we’ll be able to help you with all the required drawings for a fraction of the fees that architects normally charge.
